Separator filters

“Conwrap” Separator Filters
Flytec “Conwrap” Separator Filters are standard wrapped.
They are designed for outside to inside flow and can be used with all types of oil injection Rotary Vane and Rotary Screw Compressors. Conwrap separators operate between 1 to 60 m3/min flow rate at 7 bar with 1 to 3 mg/m3 oil carry over.

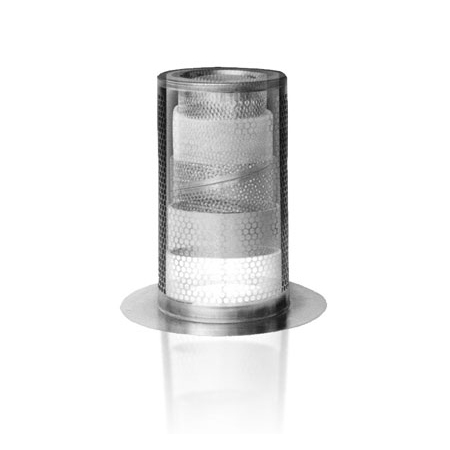

“3S” Separator Filters
The revolutionary Flytec “3S” Separator is designed to fit the smaller separator housing without downgrading the operating performance. The “3S”separator has double to triple capacity when compared to a conventional separator with the same dimensions. The “3S” separator has 1/2 – 1/3 of vlume of a conventional separator functioning in the same operating conditions. This capacity increase is achieved with specially designed progressive type, deep bed, coalescing media using a higher number of wraps.

“Pleated” Separator Filters
Flytec “Pleated” Separators increase the media surface area to reach higher capacities and maintain dimensions.

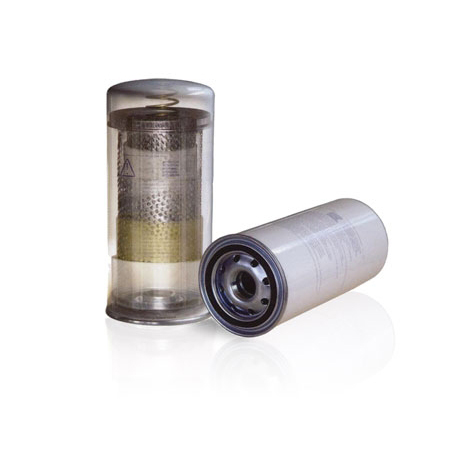

“Spin-on” Separator Filters
Flytec “Spin-on” Separators type are manufactured as an exchangeable element. Because the “Spin-on” system does not require a compressor housing, they permit uncomplicated and quick replacement without dismantling the compressor. Spin-on Separators are available for 0,6 to 6 m3/min flow rates (at 7 bar operating pressure).
